Galfan Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier Durable for Construction

Galfan Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier Durable For Construction

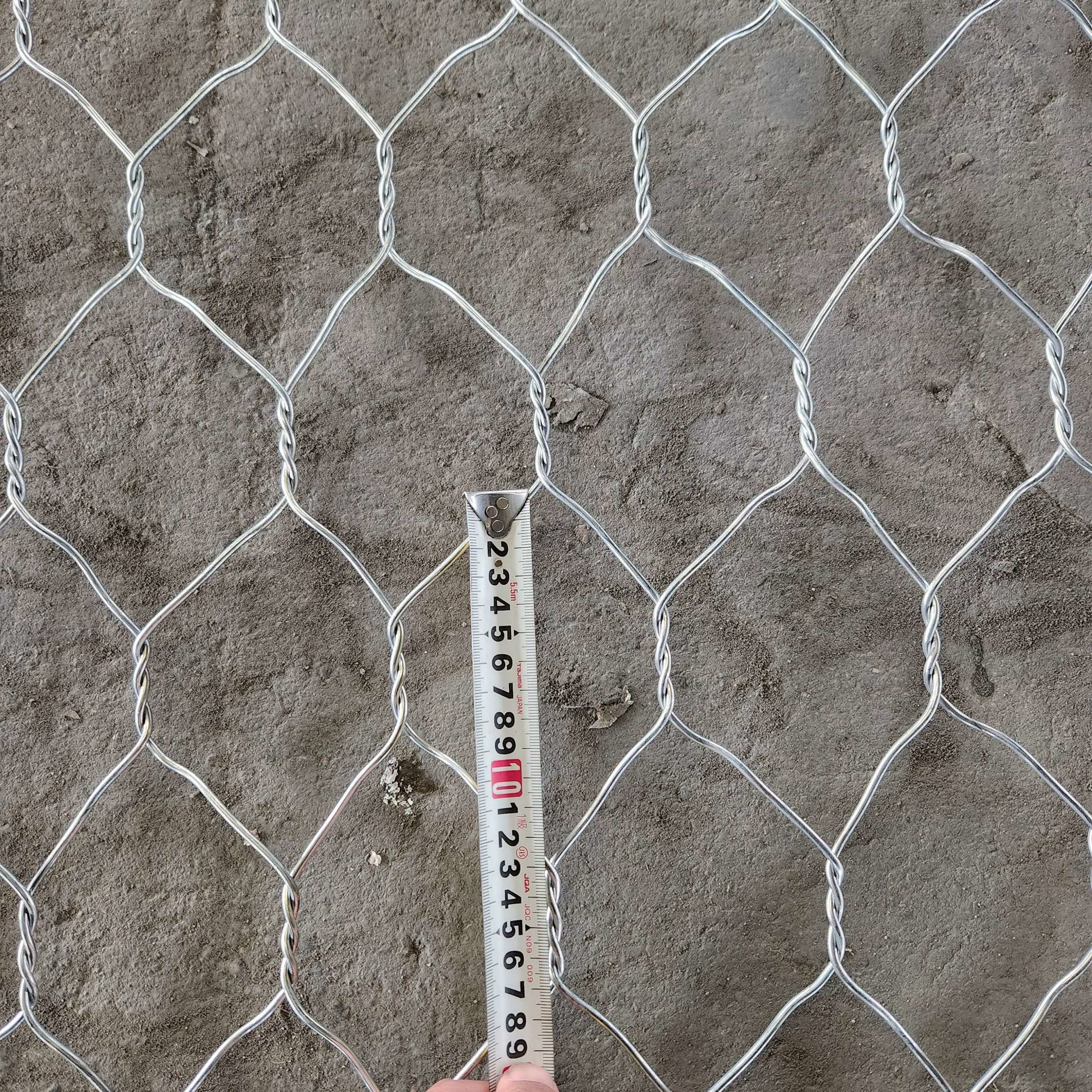

Gabion Box are one kinds of Hexagonal Wire Mesh Cage, Update products from Hexagonal Wire Mesh. It is galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope paving, out fall structures, weirs, drop structures and stream bank protection.

Key Features

• Q195, Low Carbon Steel Wire, Galvanized Wire, Hot Dipped Galvanized Wire, PVC Coated Wire, Galfan Coated Wire, 5% Aluminum-Zinc Coated Wire.
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
  Place of Origin

  Hebei, China
  Delivery Time

  within 7 days
  Brand Name

  SHUXIN
  Model Number

  SX-GB001
  Hole Shape

  Hexagonal
  Wire Gauge

  2.0mm to 4.0mm
  Processing Service

  Double Twist
  Material

  Galvanized Iron Wire
  Aperture

  80 *100 mm (Common Size)
  Color

  Green Or Deep Grey
  Keyword

  Gabion Basket
  Surface

  Hot Dipped Glanvized
  Outer Size

  2x1x1 M
  Usage

  Flood Control Retaining Wall
  Feature

  Corrosion Resistance
  Advantage

  Easy-to-install
  Characteristics

  High Tensile Strength

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

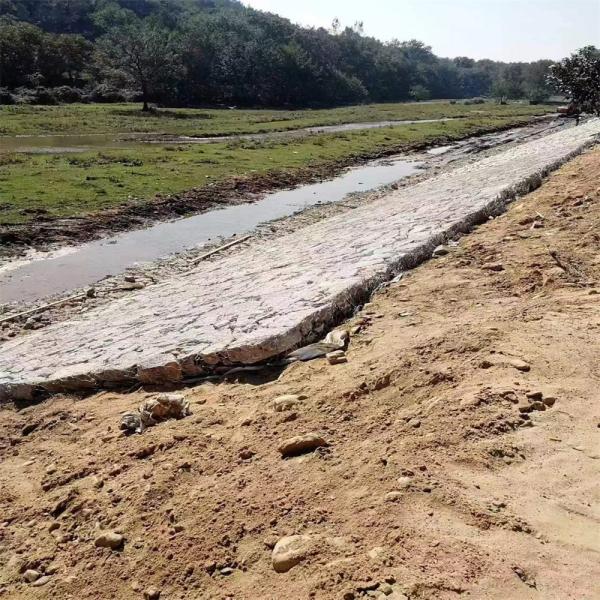

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion box river

gabion box river bank

river gabion rock box

Galfan Gabion Box River Bank Erosion Control Heavy Duty Galvanized Flood Barrier Durable for Construction Images
