Heavy Duty Gabion Mesh For Water Conservancy Projects Anti Corrosion Mesh Retaining Wall

Brand Name : KN

Model Number : KN-gabion

Certification : CE ISO SGS COC PVOC

Place of Origin : CN

MOQ : 100 pc

Price : USD 13-20

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 pc per day

Delivery Time : 15 work days

Packaging Details : pallet

Product Name : Heavy Duty Gabion Mesh for Water Conservancy Projects Anti Corrosion

Key Words : Gabion

Advantage : high quality with good price

Material : galvanized wire

Payment : T/T or L/C

Hole Shape : hexagonal

Pvc Color : Green Black

Color : red,silver, blue and so on

value : erosion control, retaining walls, channel lining, etc.

Shape : roll or panel

Contact Now

Heavy Duty Gabion Mesh for Water Conservancy Projects Anti Corrosion

Product Overview

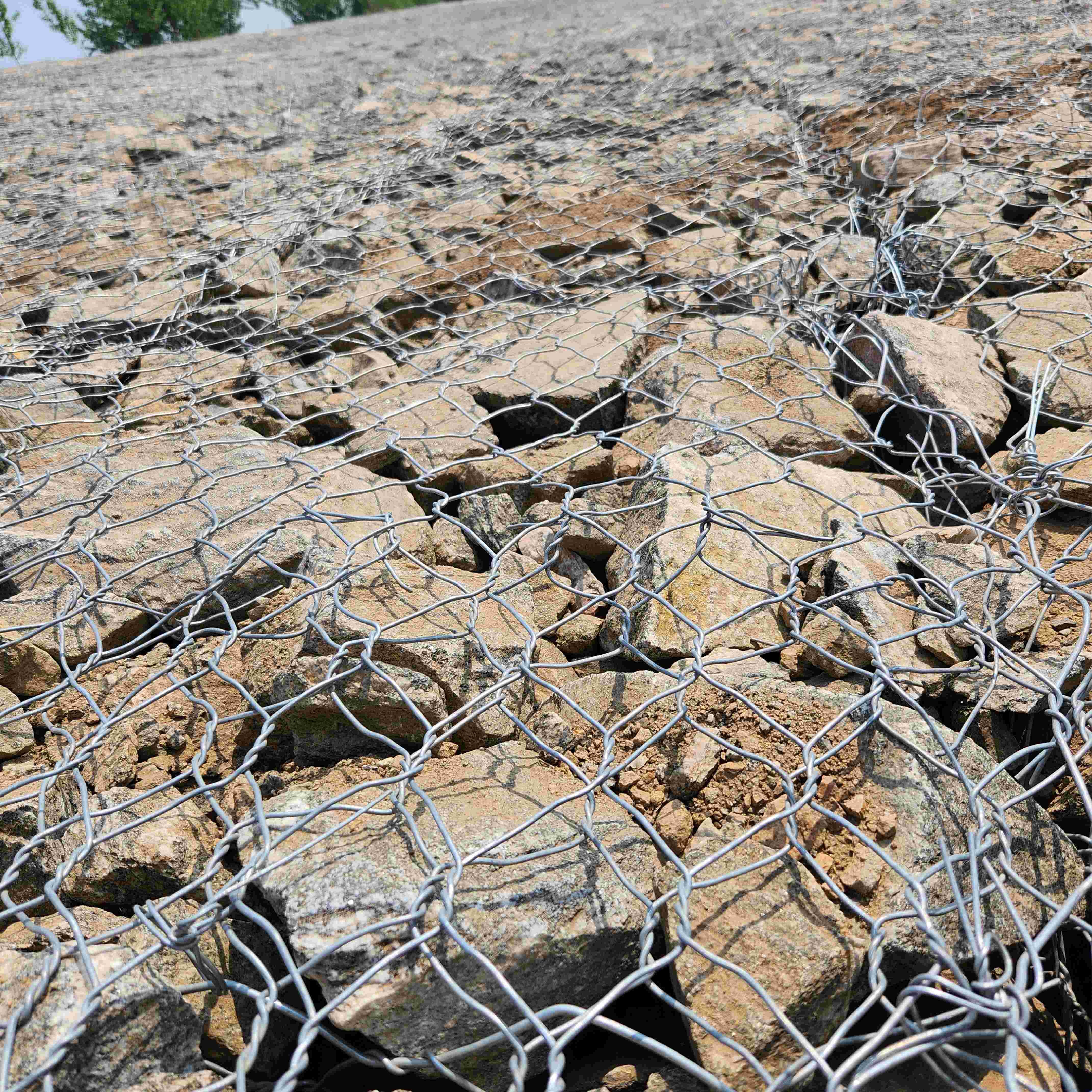

Woven Gabion Mesh – Durable hexagonal steel wire mesh for erosion control & retaining walls. Galvanized/PVC-coated for corrosion resistance. Flexible, permeable, eco-friendly. Easy to install. Custom sizes. Ideal for civil & landscape projects.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
