Galvanized Welded Wire Mesh Gabion Box With 50x100mm Mesh Hole for Garden Planters

Heavy Gauge 5.0mm Galvanized Welded Mesh Gabion Box

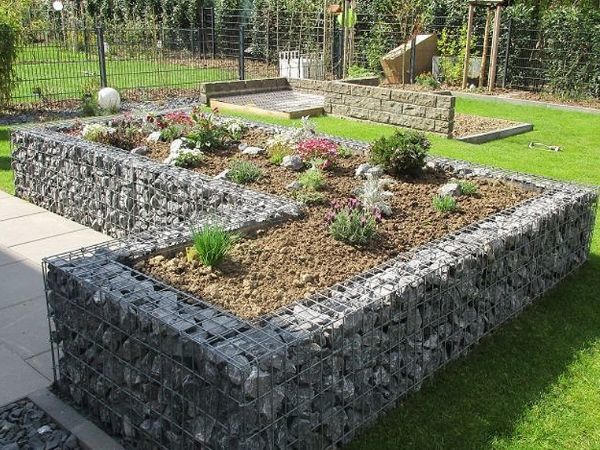

Garden Planters: Perfect for garden enthusiasts, welded gabion boxes offer a strong foundation for artistic garden walls and raised flower beds. They not only serve decorative purposes but also ensure that plants are well-supported and protected from harsh weather.

Material	Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter	3 mm-6 mm
Aperture	50*50 mm, 50*100 mm etc
Gabion Box Size	100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish	Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
Normal Box Size(cm)	Diaphragms	Capacity (m3)	Mesh Size(mm)
100x30x30	None	0.09	50×50 or 100×50
100x50x30	None	0.15
100x100x50	None	0.5
100x100x100	None	1
150x100x50	1	0.75
150x100x100	1	1.5
200x100x50	1	1
200x100x100	1	2
Other sizes can be customized.

Here are some usage scenarios for welded mesh gabions:

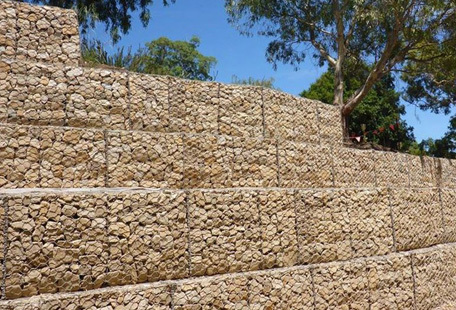

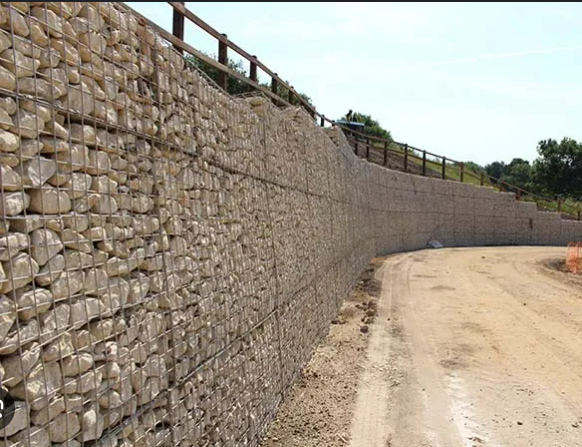

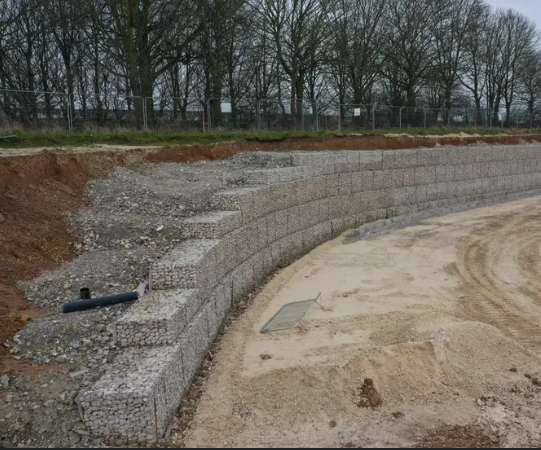

1. Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.

2. Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.

3. Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.

4. Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.

Technical Specification

• Fabric Type: Galvanized welded mesh

• Tensile Strength (wire): Welded: 540 to 770 N/mm²

• Weld Strength: 75% of the minimum ultimate tensile strength of the wire

• Available wire thicknesses – 3.0mm, 4.0mm, 5.0mm

• Mesh Aperture – 75x75mm, 50x50mm, 50x100mm, 50x200mm

• Standard basket lengths – 1000mm, 1500mm or 2000mm, 500mm etc

• Standard basket widths – 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm

• Standard basket heights – 500mm, 1000mm

• Bespoke Sizes Available

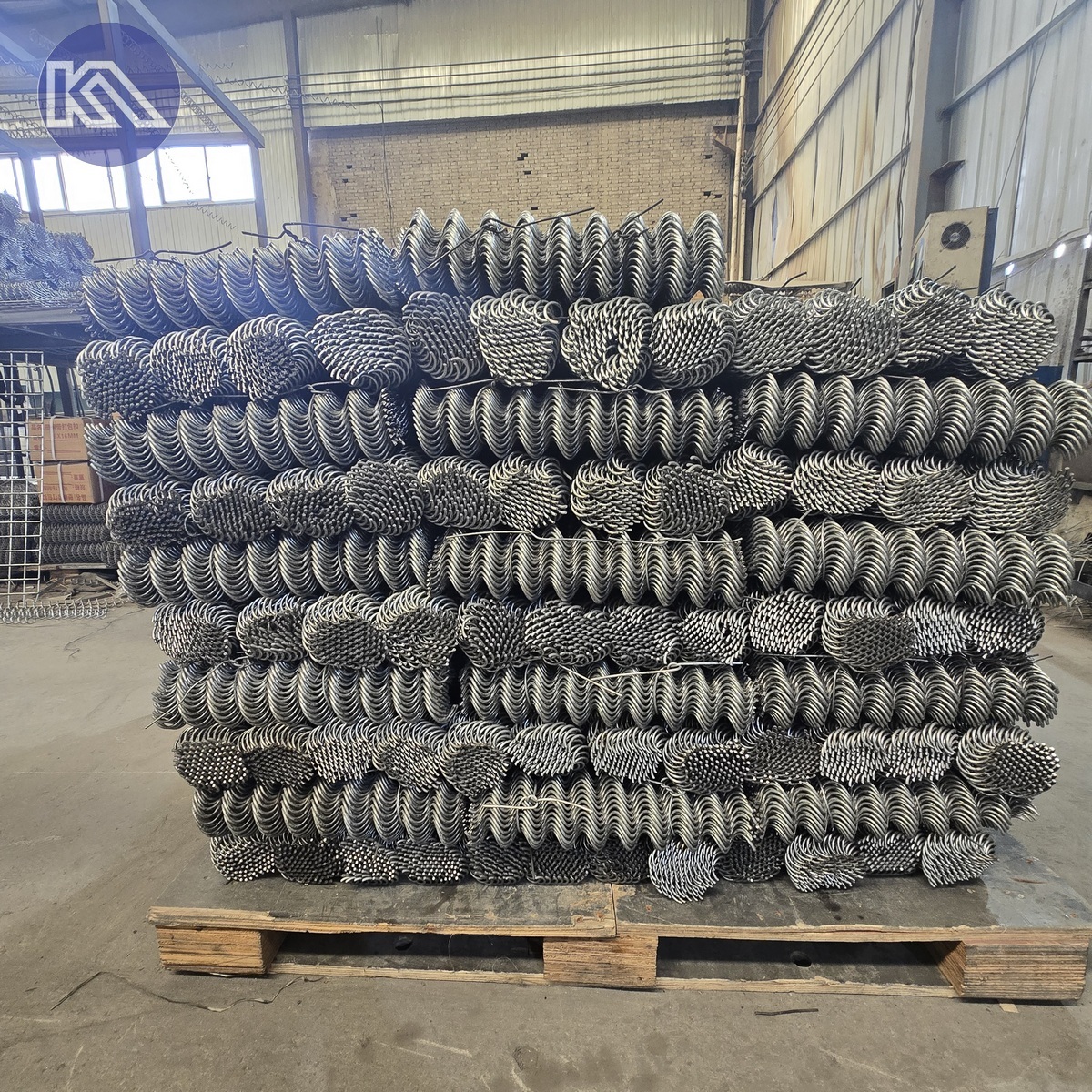

Link Accessorier:

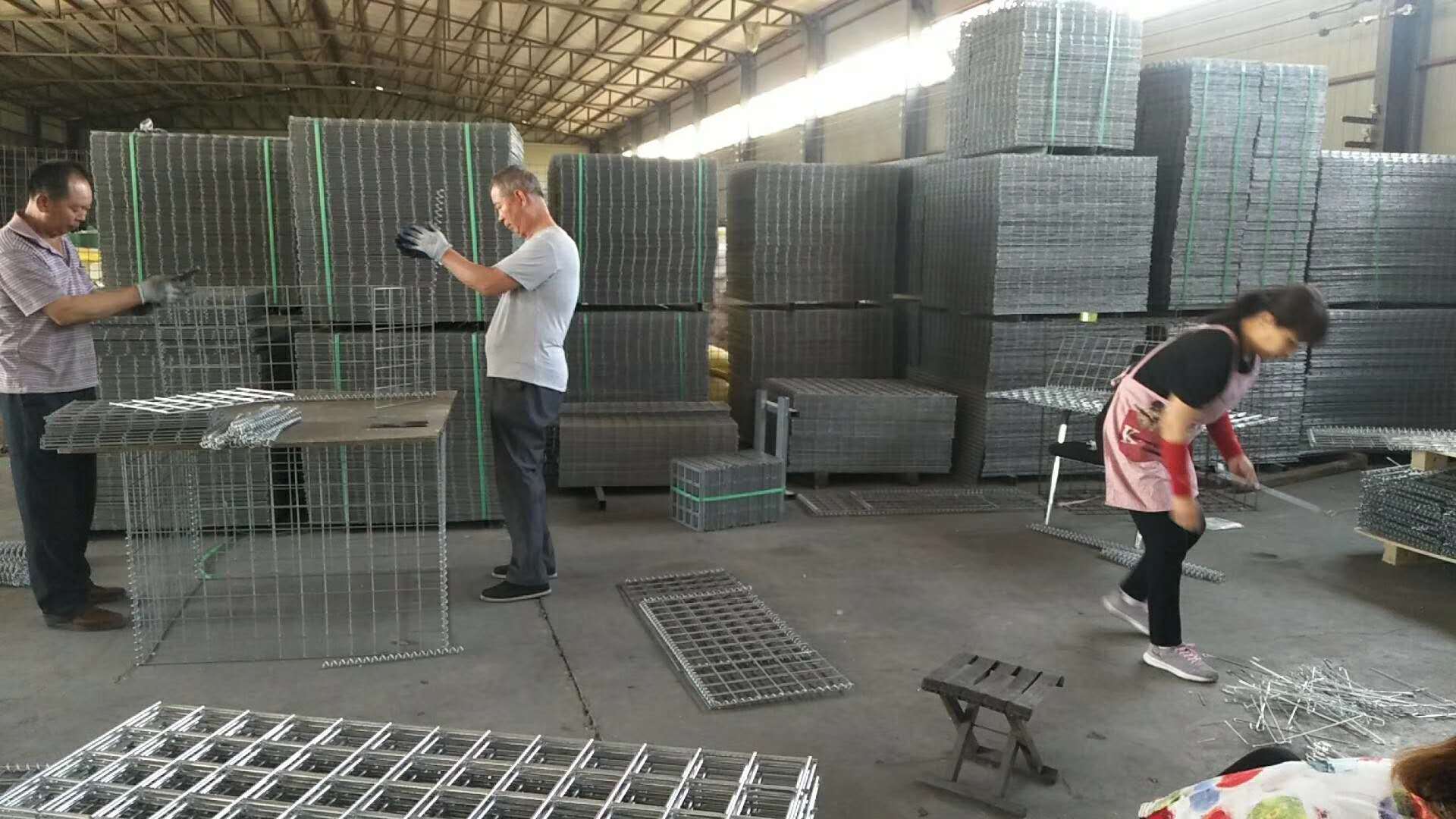

Workshop:

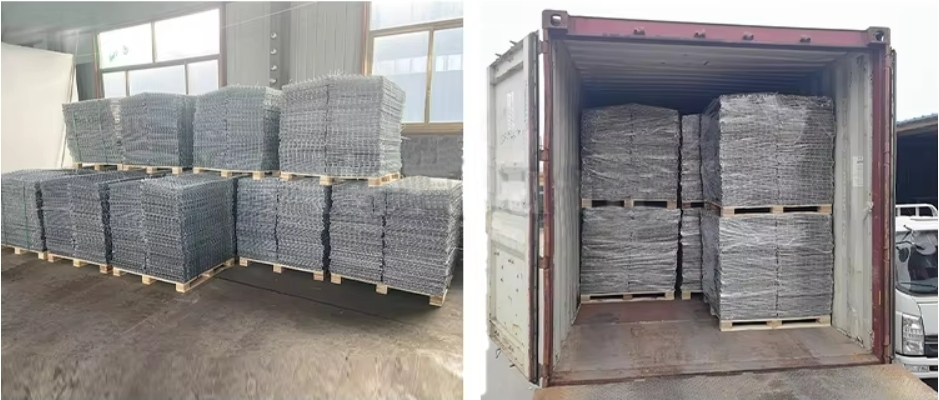

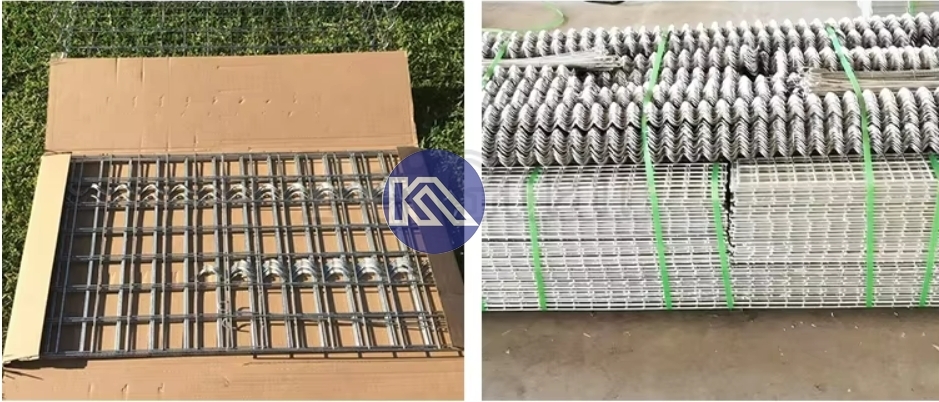

Package and Loading:
