Woven Gabion Mattress Curved Riverbank Stabilization High Tensile Wire Flood Resilience

Brand Name : KN

Model Number : KN-gabion mattress

Certification : CE ISO SGS COC PVOC

Place of Origin : CN

MOQ : 100 pc

Price : USD 16-20

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 pc per day

Delivery Time : 15 work days

Packaging Details : pallet

Product Name : Woven Gabion Mattress Curved Riverbank Stabilization High Tensile Wire Flood Resilience

Key Words : Gabion Mattress

Application : River bank protection, slope protection, erosion control

Mesh Type : Hexagonal

Mattress Size : 2x1x1 m, 3x1x1 m, 4x1x1 m

Wire Diameter : 2.0-4.0 mm

Features : Flexible, easy to install, corrosion resistant

Packing : Packed in bundles or pallets

Zinc Coating : ≥ 240 g/m2

Material : Galvanized Steel Wire

Aperture : 60x80 mm

Mesh Size : 60x80 mm, 80x100 mm, 100x120 mm

Contact Now

Woven Gabion Mattress Curved Riverbank Stabilization High Tensile Wire Flood Resilience

Woven Gabion Mattress for Water Control Projects

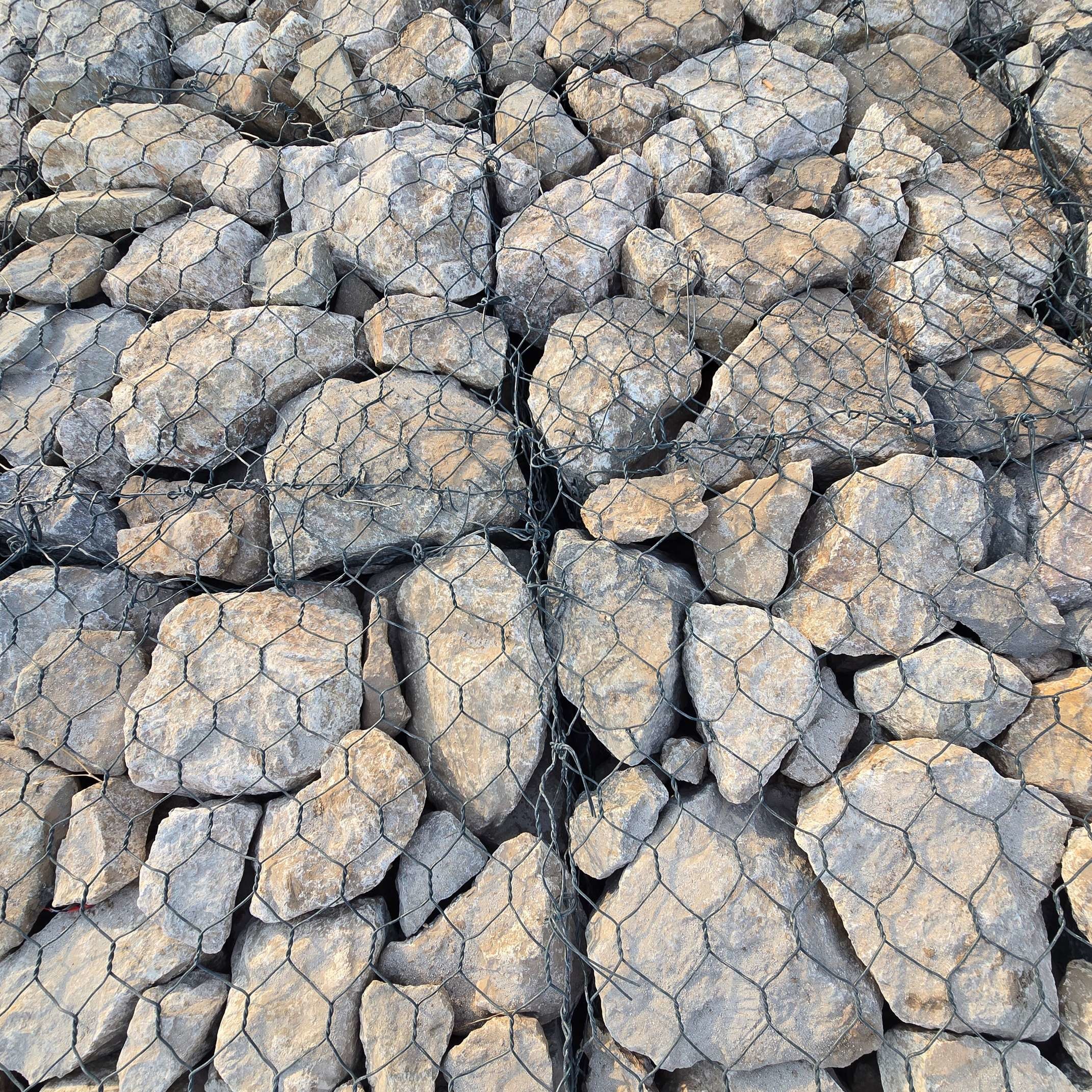

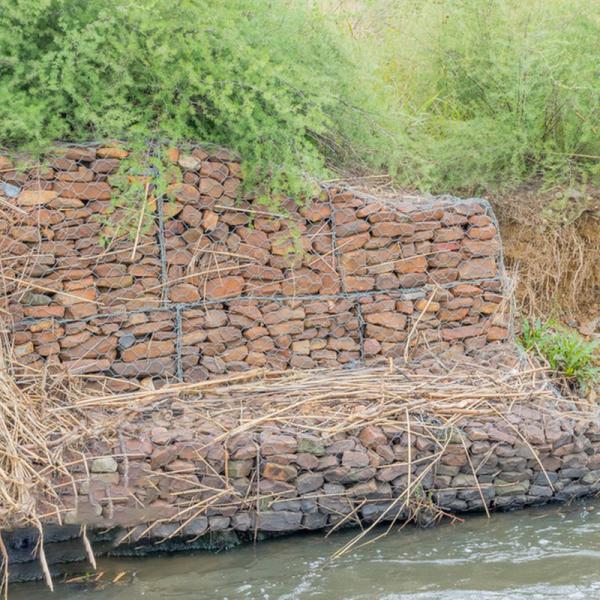

Our woven gabion mattresses are engineered for hydraulic applications, constructed from double-twisted hexagonal steel mesh (2.7-4.0mm diameter) with galvanized or PVC coating. The flat, rectangular units (standard size 2m×1m×0.3m) feature 80×100mm mesh openings filled with durable stone aggregate. Designed specifically for riverbank stabilization, channel protection, coastal revetments, and dam face armoring, these mattresses provide flexible, permeable erosion control. Internal diaphragms enhance structural integrity in flowing water conditions. The system complies with international standards (EN 10223-3) and can be customized to various thicknesses (150-500mm) for different hydraulic requirements.

Key Features

  • Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
  • Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
  • Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
  • Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention

Customization Services

  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
gabion specifications Mesh hole modle
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
Mesh diameter Zinc Mesh diameter Zinc
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 Side wire diameter Zinc Side wire diameter Zinc
4 1 1 3.4mm >265g/² 2.7mm >245g/m²
6 1 1 Binding wire diameter of 2.7m Binding wire diameter of 2.0m
